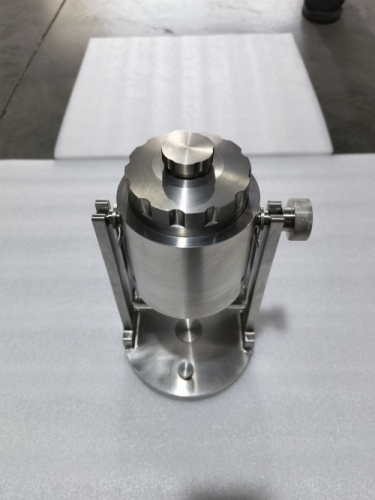

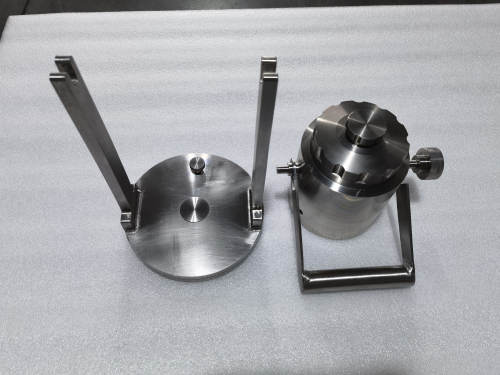

Tungsten shielding parts

Item No.: shielding parts
Xi'an Refractory & Precise Metals Co., Ltd can cut or custom make any bar to your specifications. We also offer custom alloys. Please contact [email protected] to inquire about custom or out-of-stock sizes.
Description
Description
Product: Tungsten parts

Materials & Specifications
XNR XNR-1700C XNR-1700C XNR-1750C XNR-1750F XNR-1800C XNR-1800F XNR-1850C XNR-1850F
ASTM B777 CLASS 1(NM) CLASS 1 CLASS 2(NM) CLASS 2 CLASS 3(NM) CLASS 3 CLASS 4(NM) CLASS 4
AMS T-21014 CLASS 1(NM) CLASS 1 CLASS 2(NM) CLASS 2 CLASS 3(NM) CLASS 3 CLASS 4(NM) CLASS 4
Material 90WNiCu
90% W
6% Ni Cu
90WNiCu
90% W
6% Ni Cu
92.5WNiCu
92.5% W
7.5% Ni Cu
92.5WNiFe
92.5% W
7.5% Ni Fe
95WNiCu
95% W
5% Ni Cu
95WNiFe
95% W
5% Ni Fe
97WNiCu
97% W
3% Ni Cu
97WNiFe
97% W
3% Ni Fe
Density
grams/cubic centimeter
16.85~17.25 16.85~17.25 17.15~17.85 17.15~17.85 17.75~18.35 17.75~18.35 18.25~18.85 18.25~18.85
Hardness Rockwell"C"
(maximum)
32 32 33 33 34 34 35 35
Ultimate Tensile Strength
(ksi)
94 110 94 110 94 105 / 100
Ultimate Tensile Strength
(Mpa)
648 758 648 758 648 724 /
Yield Strength at 0.2% offset
(ksi)
75 75 75 75 75 75 / 75
Yield Strength at 0.3% offset
(Mpa)
517 517 517 517 517 517 /
Elongation (%) 2 5 2 5 1 3 / 2
Compression
Application
Tungsten parts can be used in refractory alloys for hand gas turbine blades, rocket nozzles, missiles, nuclear reactor components, etc.  It can also be used as navigation gyroscope rotors, balance weights and brakes for automatic watches, etc.
You will receive a complementary material cert in the safely packaged shipment. All material is lot controlled, stress relieved, and formed through high temperature pressing and sintering processes.
Market
The strength and hardness of tungsten alloy are generally higher than that of pure metal, the resistance is larger than that of pure gold, the resistance temperature coefficient is small, and it has good comprehensive mechanical properties.  Therefore, as a non-ferrous metal, tungsten has very high strength and hardness.  Because of this characteristic, tungsten carbide with high hardness and wear resistance is widely used in cutting tools and mining tools.
They can also be used in some other top precision fields, such as mobile phone vibrators, the pendulum for the clock, automatic watch balance, shockproof knife tools, and flywheel weight.
Please contact us to find the perfect alloy and shape for your application. Or, to find out more about our custom solutions and existing product range, fill out the online RFQ form with any questions you may have and we will be in touch.
